Download LiFePO4 battery manual PDF – VB006

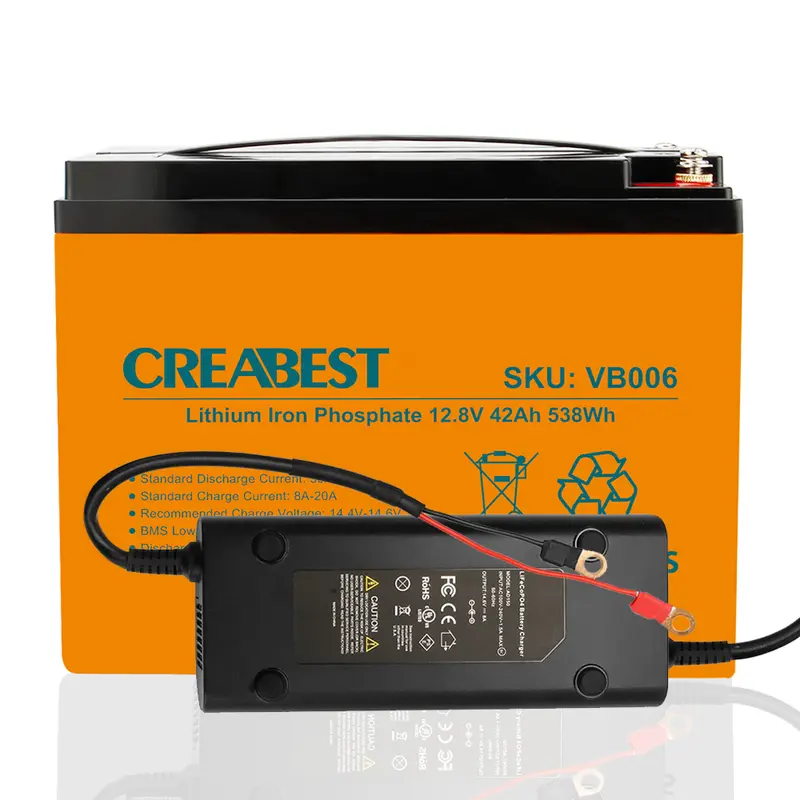

Creabest LiFePO4 12.8V 42Ah Deep Cycle Battery
Creabest RV Battery(LiFePO4) for campers/caravans/boat etc.- Several advantages
Our LiFePO4 battery pack is inner BMS (battery manag-ement system) control. Thus, if the battery works over specified, BMS will stop the battery pack working. Whatever over-charge or over-discharge, over temperature or over voltage, BMS will cut it off. The battery will not work any longer. Our LiFePO4 battery pack is the most ideal battery for you.
- Battery alarm system
- High safety
- BMS control
- No memory effect
- Light weight
- High temperature resistance
- Deep cycle
- Environmental protection
Improvement in safety
Light weight
Excellent performances at high temperature
Much long cycle life
Higher energy density than Lead-Acid
No memory effect,More environmental
Product Specifications(VB006 Series)
| Voltage | 12.8V | Cell Type | LiFePO4 |
| Capacity | 42Ah | Discharge Temperature | -20°C -60°C |
| Total Energy | 538Wh | Charge Temperature | 0°C -55°C |
| Standard discharge current | 50A | Storage Temperature | -20°C -60°C |
| Peak Discharge current(1s) | 200A | Terminal Type | M6 |
| Standard Charge Curren | 8A-20A | Communication | N/A |
| Recommended charge Voltage | 14.4V-14.6V | Communication Terminal | N/A |
| BMS low voltage protection | 8V | Net Weight | 6.5KG |
| Series/Parallel | 4S1P | Dimensions | 223x120x175mm |
| Resistance | ≤10mΩ | Inverter | 12V 600W |
Creabest LiFePO4 Batttery Widely Used In
Creabest LiFePO4 battery, specifically a lithium-ion battery, which uses LiFePO4 as a cathode material, and a graphitic carbon electrode with a metallic current collector grid as the anode.Because of the outstanding advantages in safety and cycle life, LiFe-PO4 battery iswidely used in power storage and vehicle.
【APPLICATION in Modification & Aftermarket】
1). With 8A charger for free, full charging time 5-6 hours, market price 45 GBP.
2). The charging time of the LiFePO4 battery is 2-3 times faster than that of the AGM battery.
3). Wide range of applications: campers, caravans, camping, boat, exterior lighting, car start temporarily, caravan mover, off-grid, and so on.
【QUALITY VERIFIED】
This battery has been tested in several conditions, and the testing results are great.
* The LiFePO4 battery did not give rise to burning or exploding when being punctured in the nail penetration test.
* Its Cold Cranking Amps and voltage were all performing normal, even in the low temperature test.
* The great stability in high temperature was remarkable.
* Equiped with first-rate BMS, the battery went well in the short-circuit test, discharge test and the charge test as well.
【Attention】
Warranty: 2 years manufacturer’s warranty, unlimited technical support for battery life.
