Delivery Time 8-12 Weeks

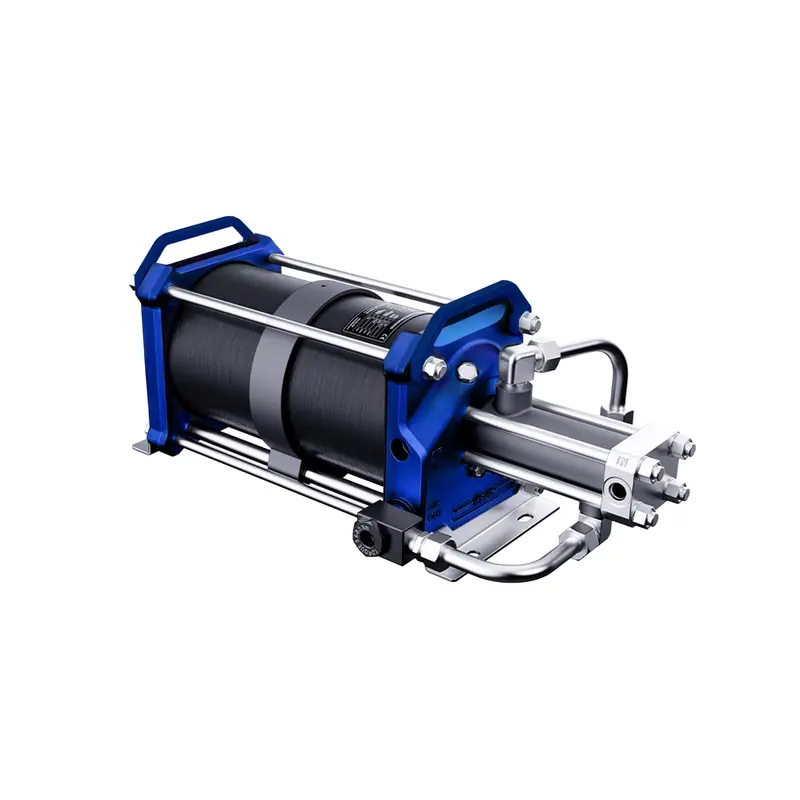

The NGB-2-2 is an air-driven gas booster designed for relatively high medium gas pressure requirements with larger flow than single-drive single-acting models.
- Configuration: Double-drive, single-acting
- Pressure ratio: 1:2
- Displacement per cycle: 1800 ml
- Max. outlet pressure: 32 bar / 464 psi
- Min. inlet pressure: 0 bar / 0 psi
- Max. inlet pressure: 32 bar / 464 psi
- Drive inlet: NPT1/2
- Medium inlet: NPT3/4
- Medium outlet: NPT1/2
- Dimensions (A x B x C): 645 x 275 x 230 mm
- Weight: 17 kg
Suitable for air drive pressure (P_L) from 3 to 8 bar (43.5 to 116 psi).
Installation and operation must be carried out by qualified personnel. Medium compatibility should be verified for the intended gas before use.
