Delivery Time 8-10 Weeks

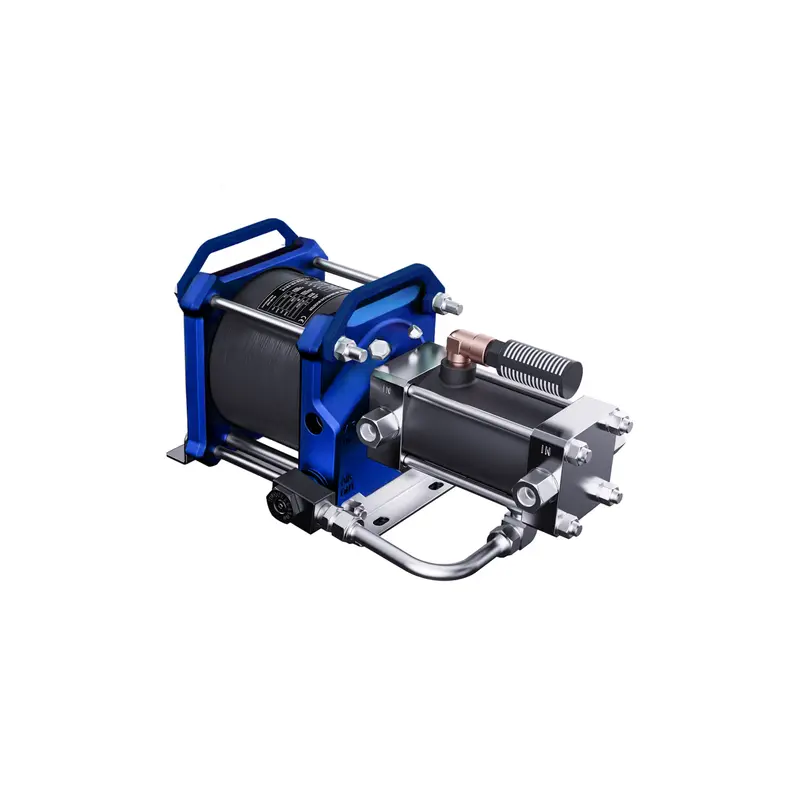

The NGB-5 is an air-driven gas booster designed for testing or small-part filling where pressure and flow requirements are not high.
- Configuration: Single-drive, single-acting
- Pressure ratio: 1:5
- Displacement per cycle: 373 ml
- Max. outlet pressure: 40 bar / 580 psi
- Min. inlet pressure: 2 bar / 29 psi
- Max. inlet pressure: 40 bar / 580 psi
- Drive inlet: NPT1/2
- Medium inlet: NPT3/8
- Medium outlet: NPT3/8
- Dimensions (A x B x C): 410 x 240 x 230 mm
- Weight: 15 kg
Suitable for air drive pressure (P_L) from 3 to 8 bar (43.5 to 116 psi).
Installation and operation must be carried out by qualified personnel. Medium compatibility should be verified for the intended gas before use.
